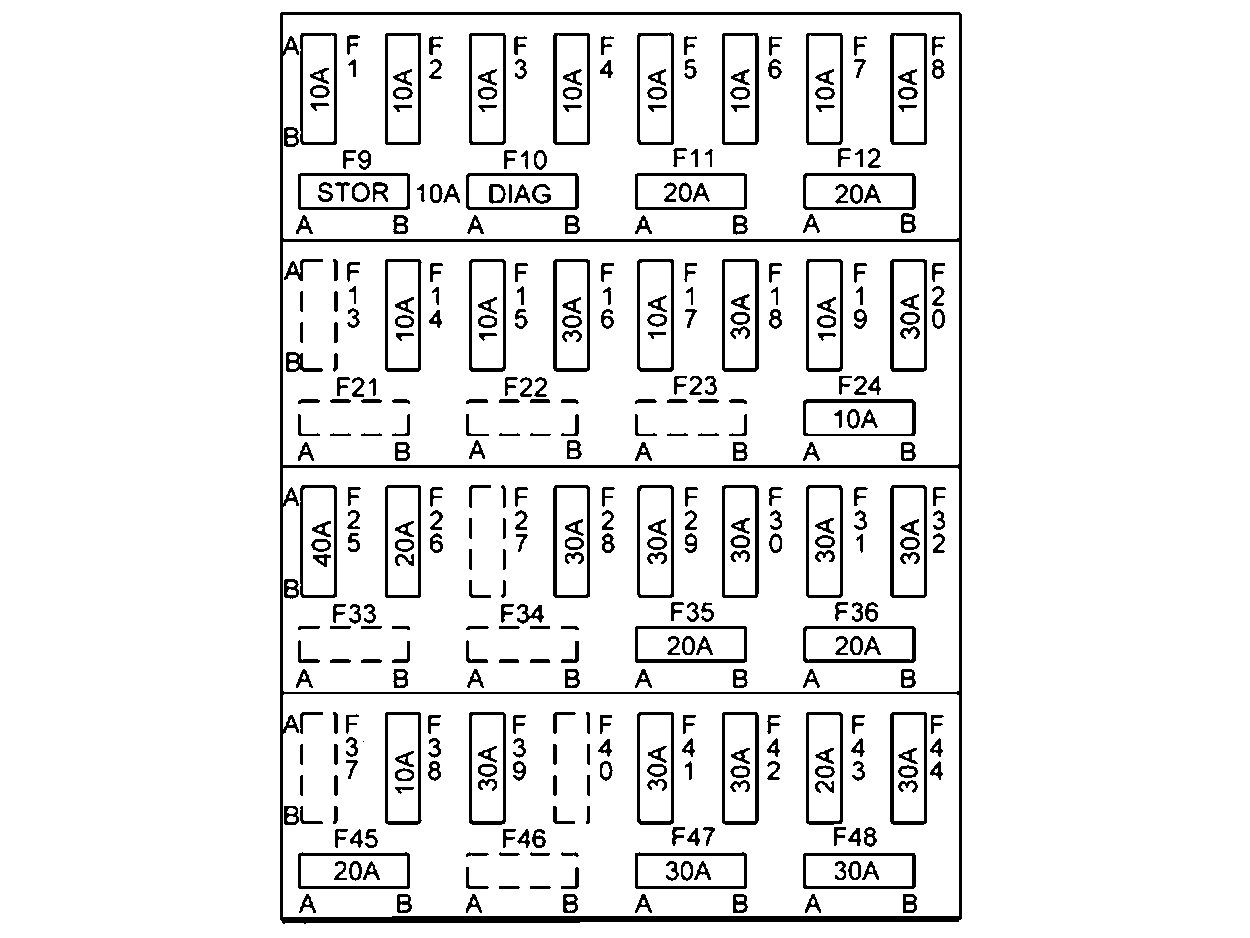

F1-Chassis Computer (CCU)
F2-Instrument Control Unit (ICU), Warning Horn, Decelerate Switch, Brake Pedal Switch, Park Brake Switch, Differential Lock Switch, SCV Set-Up Panel
F3-Armrest Control Unit (ACU)
F4-Cornerpost Display, Performance Monitor
F5-Hitch Control Unit (HCU) and SCV I
F6-SCV 2-3
F7-SCV 4-5 Control Unit (SCo)
F8-Not Used
F9-Diagnostic Fuse Storage
F10-Diagnostic/Calibration Mode
F11-Alternator, Starting Aid
F12-Engine Control Unit (ECU), Actuator Solenoid-(9100)
|
F13-Transmission Control Unit (Powershift)
F14-Sensor Power, Radar Sensor
F15-Not Used
F16-Diagnostic Connector (Switched)
F17-Diagnostic Connector (Unswitched)
F18-Key Switch
F19-Radio, Clock, Dome Light, Left Entry Light, Horn, Turn Signal Switch, Hi/Low Beam Switch
F20-Light Switch
F21-Not Used
F22-Test/Calibrate for Transmission Control Unit (Powershift)
F23-Not Used
F24-Radio/Clock, ICU Backlighting, and Right Console Light
|
F25-Heating, Ventilating, and Air Conditioning
F26-Pressurizer Blower Motor
F27-Not Used
F28-Wiper Circuit
F29-Front Floods and Beacon Light, K4 Relay
F30-Roof Floods, K3 Relay
F31-7-Way Accessory Outlet, K5 Relay
F32-Warning Lights and Switch, Turn Signal Lights, K8 and K9 Relays
F33-Not Used
F34-Not Used
F35-Left Tail Light
F36-Right Tail Light
F37-Not Used
F38-Operator Presence Switch, Ride Zone Protector
F39-7-Way Accessory Outlet, K12 Relay
|
F40-Not Used
F41-Convenience Outlets, Junction Blocks, Field Office, Auxiliary Power Strip, and Lighter
F42-Hi/Lo Beam Lights, K1 and K11 Relays
F43-Engine Control Unit (ECU) (92-93-9400)
F44-Rear Fender Flood Lights, K7 Relay
F45-Seat Compressor Motor/Bleed Valve, Radio
F46-Not Used
F47-Convenience Outlets, Junction Block (Left Side), Business Band Prewire, Field Office
F48-Convenience Outlets, Junction Blocks (Right Side), Auxiliary Power Strip
|
