Adjusting Front Flood Lights

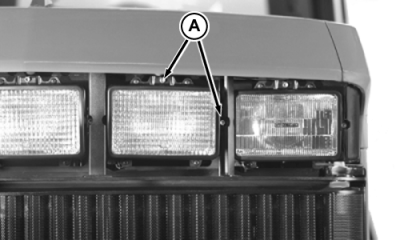

Use star driver to adjust screws (A). This allows flood light to adjust up or down and from side-to-side.

Flood lights should be adjusted parallel with light support plate and slightly down, or adjust to cover desired area.

AG,RF30435,2221 -19-19NOV99-1/1
