OMAR177989: 9100, 9200, 9300, and 9400 Tractors( 40 001- ), Block File: AG_RF30435_2223_19

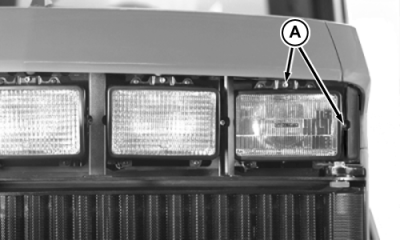

Adjust screws (A) using a star driver. This allows head light to adjust up or down and from side-to-side.

Head lights should be adjusted parallel with light support plate and slightly down, or adjust to cover desired area.

AG,RF30435,2223 -19-19NOV99-1/1
