Replacing Fender Mounted Flood Lights

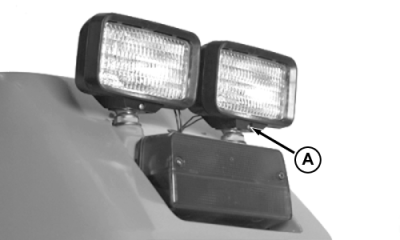

Remove screw (A) securing bezel to housing.

Unfasten light retainer and pull bulb from housing.

Disconnect bulb from wiring harness and connect new bulb.

RW56229A

AG,RF30435,2226 -19-19NOV99-1/1
