Checking Transmission Oil Level

IMPORTANT: Do not operate tractor if oil is below mark (C).

Operate engine at 2100 rpm, with transmission in PARK position for at least 5 minutes (or longer with cold oil) to fill axles and return oil from the axles to the transmission.

Stop engine and allow the oil level to stabilize in the sight gauge for at least 5 minutes. Recheck oil level and fill at tube (A) as necessary.

If the oil level is below mark (C) do not move tractor. Add oil to correct level between marks (B).

NOTE: During tractor operation, oil can appear foamy in sight gauge.

Oil level in the sight gauge may appear low while tractor is running. Stopping tractor, operating engine returns oil from axles.

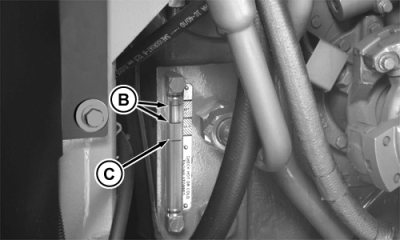

A-Transmission Fill Tube
B-Full Oil Level Marks
C-Low Oil Level Mark

AG,RF30435,2648 -19-28JUL00-1/1
