Using Monitor Mounts

Monitor mounting points are used to connect implement monitors to the cab.

  Mounting Locations

  A-Corner Post Display
  B-Rear Cab Post
  C-Side Console


RW26189

Corner Post

RW26659

Rear Cab Post

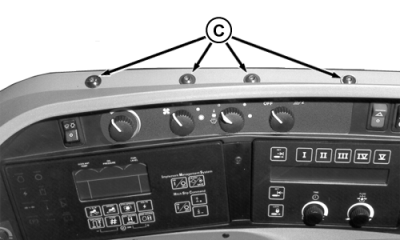

RW27085

Side Console

AG,RW24911,147 -19-30AUG00-1/1
