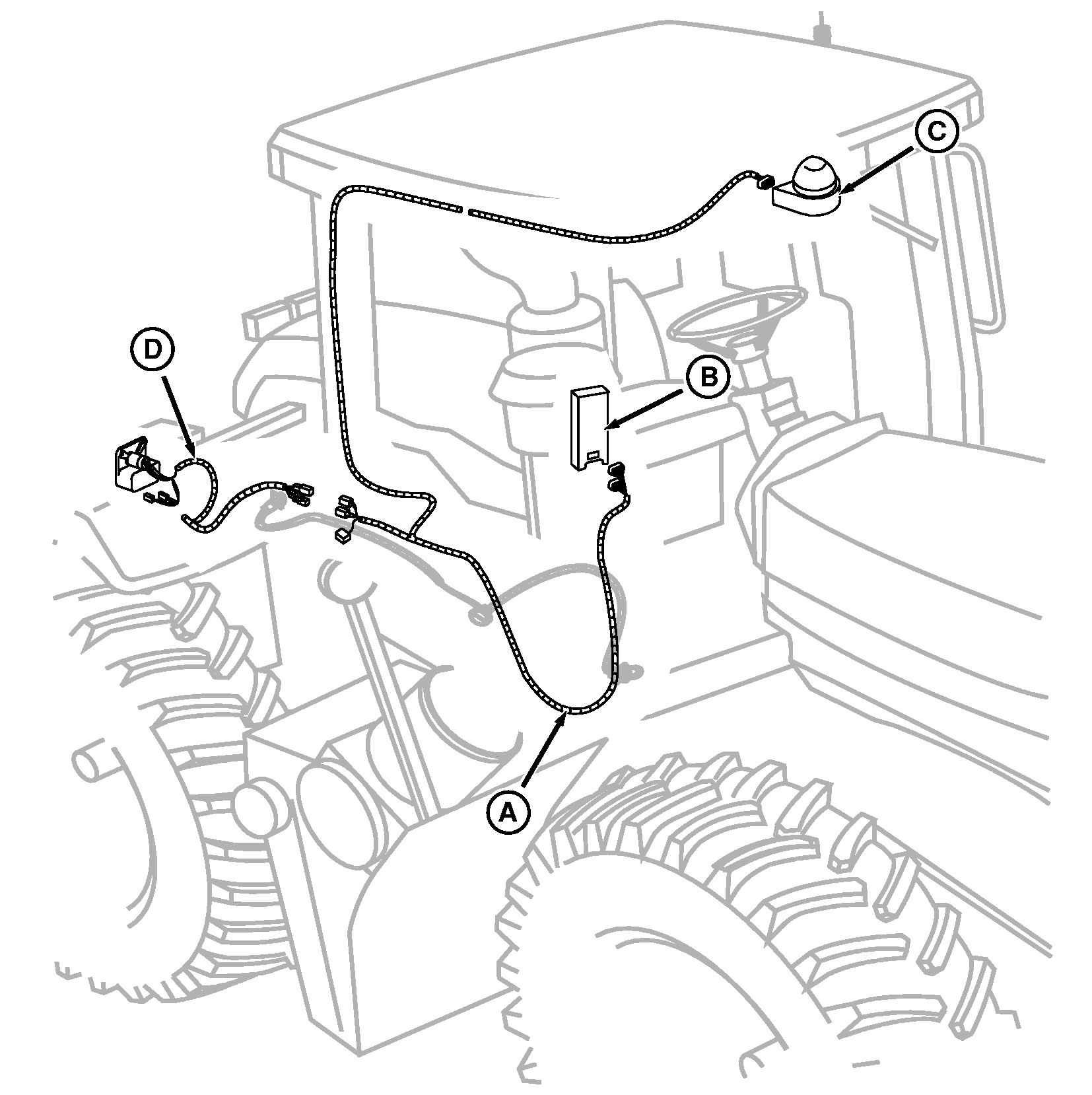

GreenStar™ System Connections-Optional

A-Cab Harness

B-Display and Mobile Processor/Connector

C-Position Receiver/Connector

D-Implement Harness/Connector

Harness connector for Display and Mobile Processor (B) are behind the corner post display cover. Harness connector for the Position Receiver (C) are under the green roof above the wiper motor. Implement Harness connector is at the rear of the tractor.

The GreenStar System has a 2.5 volt dual-CAN Bus. See your John Deere Dealer for system details.

GREENSTAR is a trademarkof Deere & Company

AG,RW24911,149 -19-31AUG00-1/1
