Using Radial-Ply and Bias-Ply Tires

CAUTION: Do not operate with single wheels except 9100 or 9200 equipped with 710/70R38 tires.

If outer duals must be removed, adjust wheels to wider tread and travel at SLOW speeds.

High-speed transport with outer duals removed can cause loss of steering control and reduce vehicle stability. Reduce speed immediately if loss of steering control occurs.

IMPORTANT: Mixing worn and new tires, bias and radial, or tires of different diameters or loaded radius can reduce performance and cause excessive wear on drive train components.

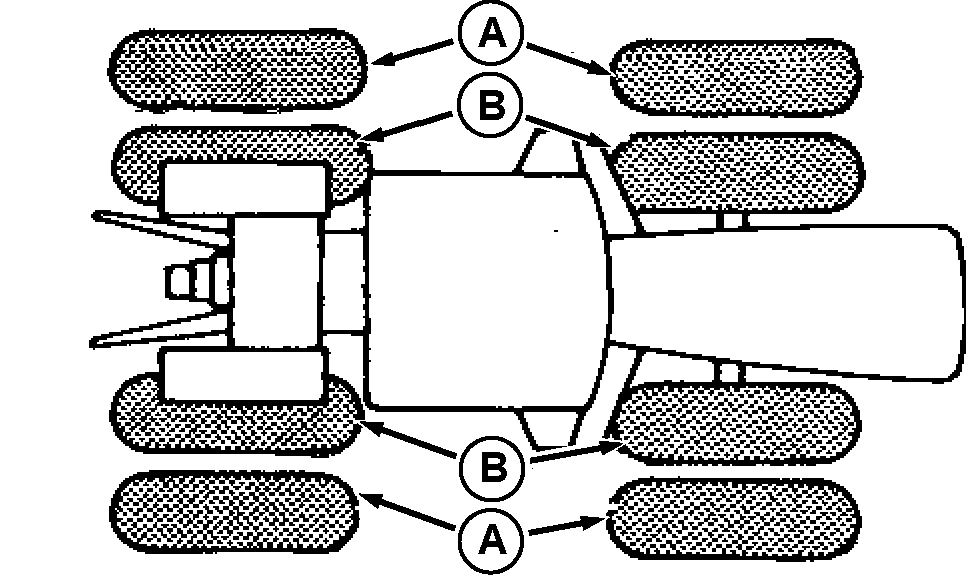

When radial-ply tires are used as inner dual (B), outer dual (A) may be bias-ply tires (A).

Any other mixing of radial-ply and bias-ply tires is not recommended.

AG,RX15494,244 -19-22MAR99-1/1
