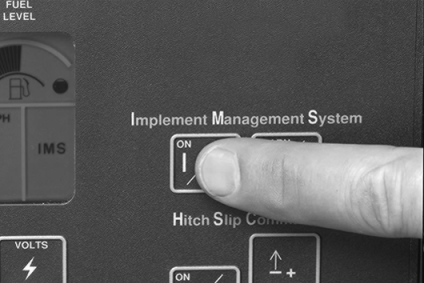

Implement Management System (IMS) allows multiple tasks to be performed with the touch of one switch.

IMS has two sequences in which to store learned functions. A sequence is defined as the start of the first recorded function to the completion of the last recorded function.

NOTE: Tractor must be moving to program or execute a sequence. Learned sequences will remain stored after engine stops.

NOTE: When "R" reverse is displayed on the corner post display, IMS sequences cannot be learned.

A sequence is executed according to the distance required to perform a series of functions when the system is in the LEARN mode. A maximum of 12 functions can be learned for each sequence.

AG,RX15494,2682 -19-25JUL00-1/1
