Checking PARK Position-12-Speed Syncro and 24-SpeedPowrSync Transmissions

Park tractor on a 30% incline (3 ft vertically for every 10 ft horizontally).

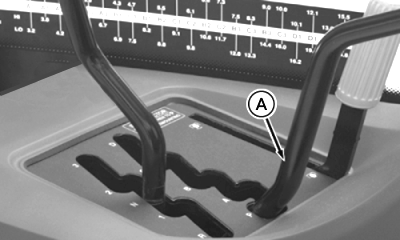

Move range shift lever (A) to PARK position.

Transmission should be repaired immediately by your John Deere Dealer, if tractor does not hold on incline with range shift lever in PARK position.

AG,RX15494,3882 -19-30AUG00-1/1
