Checking PARK Brake-Powershift Transmission

Park tractor on a 30% incline (3 ft vertically for every 10 ft horizontally).

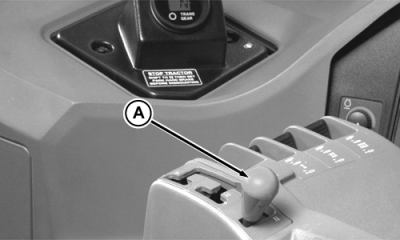

Move shift lever (A) to NEUTRAL position and engage park brake.

Transmission should be repaired immediately by your John Deere Dealer, if tractor does not hold on incline with park brake engaged.

AG,RX15494,3883 -19-30AUG00-1/1
