Using Hydraulic Motor Case Drain Return

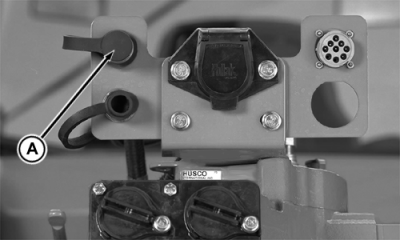

Remove cap from hydraulic motor seal drain coupler (A). Connect motor case or seal drain return hose to coupler, making sure hose end and coupler are clean.

Allows oil to return directly to reservoir from hydraulic motor, by-passing remote coupler, SCV, and filter.

NOTE: Use hydraulic case drain return, with motors requiring a separate case drain for leakage, where flow does not exceed 8.4 L/min (2.2 gpm). SCV hose tip ejection will result if oil flow is at a higher rate.

(See Implement Connection Example 3-Motor Application Using Motor Case Drain in this section.)

RX15494,0000FEC -19-08SEP00-1/1
