Using Float Position

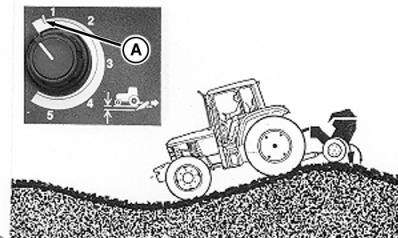

Equipment having depth-gauge wheels may require floating operation to follow ground contours.

Set load/depth control to "position" (A) control and push hitch control lever fully forward.

NOTE: Lift links can be adjusted for lateral float. (See Lateral Float in this section.)

A-Position Setting

AG,RX15494,2703 -19-14SEP02-1/1
