Installing Quik-Tatch Weights

Up to 22 QUIK-TATCH ™ weights can be installed on tractors.

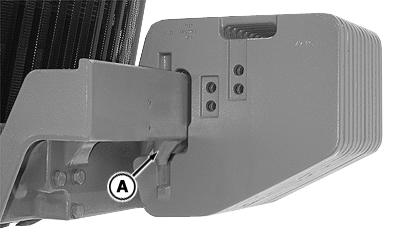

Install QUIK-TATCH weights, balanced on each side of center (A). The first two weights must be installed as a pair.

Run retaining bolts through holes and secure with a nut to hold six weights or fewer in position. Tighten bolts.

Weight Attaching Bolts - Specification

Bolt -Torque 230 N·m (170 lb-ft)

RXA0057406


A-Weight

QUIK-TATCH is a trademark of Deere & Company

AG,RX15494,2772 -19-22MAR04-1/2

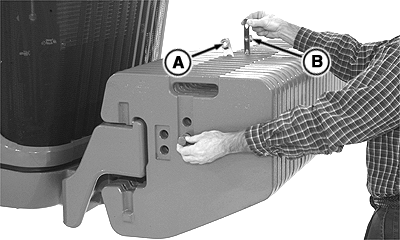

Insert retainers between weights, one with threaded hole upward (A) and the other with threaded hole downward (B) when eight or more weights are installed. Tighten bolts.

Weight Attaching Bolts - Specification

Bolt -Torque 230 N·m (170 lb-ft)

NOTE: When adding front weights some weight is transferred from the rear of the tractor to the front. Use following guidelines to figure tractor weight when front weights are added.

  Front Ballast Added
  Two-Wheel Drive MFWD and ILS

Front Weight Support:
.. Front Axle   +422 +447
.. Rear Axle   -107 -132
.. Total Weight   +315 +315
One Suitcase Weight:
.. Front Axle   +143 +151
.. Rear Axle   -43 -51
.. Total Weight   +100 +100
22 Suitcase Weights:
.. Front Axle   +3136 +3322
.. Rear Axle   -936 -1122
.. Total Weight   +2200 +2200


RXA0057408


A-Retainer with Hole Up
B-Retainer with Hole Down
