Using Heating and Air Conditioning - Standard

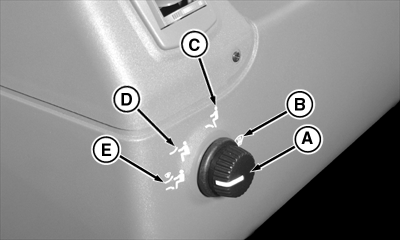

To direct air flow, turn knob (A).

A-Air Flow Knob
B-Windshield
C-Floor
D-Dash
E-Windshield, Dash, and Floor

OURX935,0000006 -19-08APR03-1/3

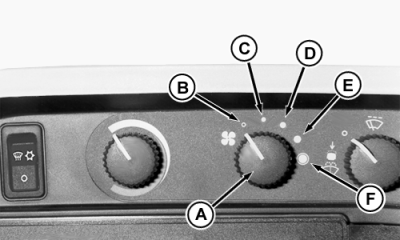

Turn knob (A) to desired fan speed.

A-Fan Control Knob
B-Off
C-Low
D-Medium
E-High
F-Purge

OURX935,0000006 -19-08APR03-2/3

NOTE: The purge position (F) is designed to exhaust hot air rapidly from the cab.

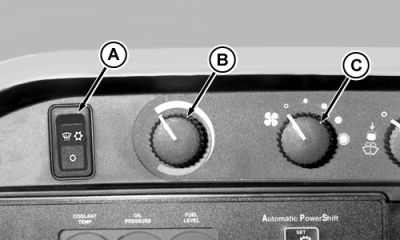

Before operating air conditioner, turn fan speed control (C) and air conditioning switch (A) to ON.

Control (B) regulates heater and defroster temperature.

Put switch (A) in ON position to defog windows, and adjust control (B) to desired temperature.

A-Switch
B-Control
C-Speed Control

OURX935,0000006 -19-08APR03-3/3
