Operating Lights
 CAUTION:
Avoid injury caused by accidental collision with another vehicle. Always comply with traffic regulations when driving tractor on a road. Dim headlights to low-beam for oncoming vehicles. Avoid using flood lights which could blind or confuse other drivers.
The light switch (A) has four positions and operates regardless of the key position.
| OFF POSITION |
| |
| Switches Off All Lights |
| |
| ROAD POSITION-(B) |
| Low Beam Position: |
High Beam Position: |
| |
|
| Head Lights |
Head Lights |
| Amber Roof Hazard Lights |
Amber Roof Hazard Lights |
| Tail Lights |
Tail Lights |
| Extremity Warning Lights |
Extremity Warning Lights |
| |
|
| FIELD POSITION 1-(C) |
| Low Beam Position: |
High Beam Position: |
| |
|
| Head Lights |
Head Lights |
| Front Grille Floods |
Front Grille Floods |
| Rear Fender Floods |
Front Grille Spot Light * |
| |
Rear Fender Floods |
| |
Rear Roof Floods |
| FIELD POSITION 2-(D) |
| Low Beam Position: |
High Beam Position: |
| |
|
| Head Lights |
Head Lights |
| Front Grille Floods |
Front Grille Floods |
| Rear Fender Floods |
Front Grille Spot Light * |
| Mid-Body Floods |
Mid-Body Floods |
| |
Rear Fender Floods |
| |
Rear Roof Floods |
| * If Equipped |
Side-Mounted Floods * |
|

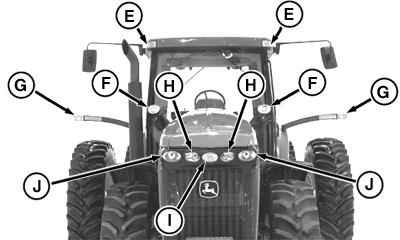

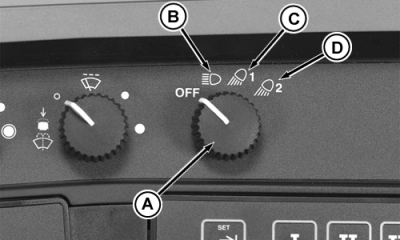

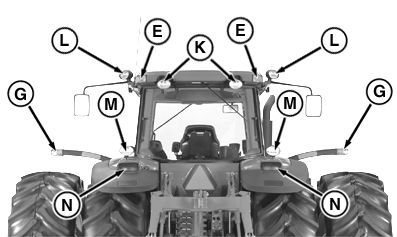

A-Light Switch
B-Road Position
C-Field Position 1
D-Field Position 2
E-Amber Hazard Lights
F-Mid-Body Floods
G-Extremity Transport Warning Lights
H-Front Grille Floods
I-Spot Light (If Equipped)
J-Head Lights
K-Rear Roof Floods
L-Side-Mounted Floods (If Equipped)
M-Rear Fender Floods
N-Red Tail Lights
|
