Using Monitor Mounts

Monitor mounting points are used to connect implement monitors to the cab.

  Mounting Locations

  A-Corner Post Display
  B-Rear Cab Post
  C-Side Console


RXA0057158

Corner Post

RW26659

Rear Cab Post

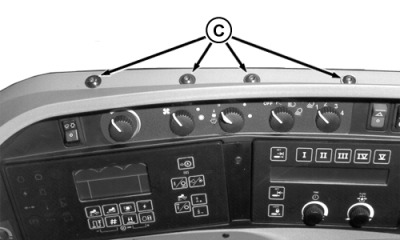

RW26695

Side Console

OURX935,0000083 -19-29SEP03-1/1
