Lubricating MFWD Axle-Standard

SERVICE INTERVAL - 250 HOURS *

* Daily or 10 Hours in extremely wet conditions or where Auto Trac is used.



Use SD Polyurea Grease. DO NOT use Arctic grease with specification requirements per MIL-G-10-924C.

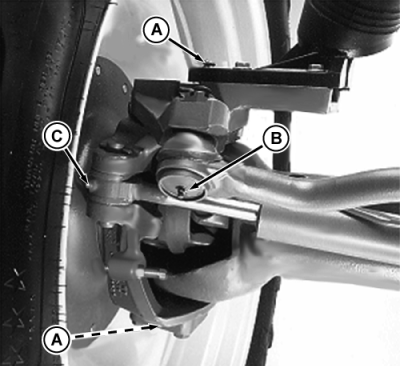

Kingpins -Lubricate fittings (A) until grease appears at orifice on bottom end of each kingpin bearing.

Tie Rods -Lubricate fittings (B).

Steering Cylinder -Lubricate fittings (C).

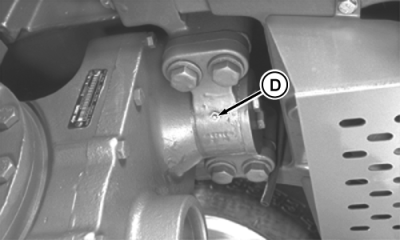

Axle Pivot -Lubricate front and rear fittings (D).

RW56651A
RW56652A

OURX935,0000089 -19-29SEP03-1/1
