Lubricating Independent Link Suspension Axle-

SERVICE INTERVAL -

  EXTERNAL FITTINGS-250 HOURS *
  TIE ROD INTERNAL BALL JOINTS-1500 HOURS **

* Daily or 10 Hours in extremely wet conditions or where Auto Trac is used
** See your John Deere Dealer for service



Use SD Polyurea Grease.

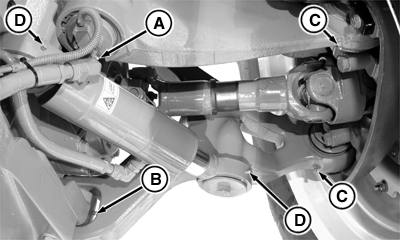

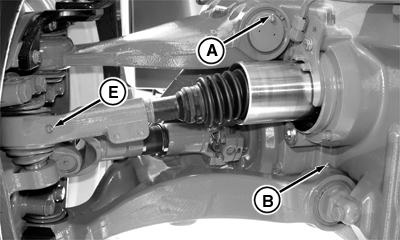

Upper Control Arms -Lubricate fittings (A) with grease on each side of suspension.

Lower Control Arms -Lubricate fitting (B) with grease on each side of suspension.

Kingpins -Lubricate fittings (C) with grease for each kingpin bearing.

Suspension Cylinders -Lubricate fittings (D) with grease for both ends of each suspension cylinder.

Tie Rods -Lubricate fittings (E) with grease for each tie rod.

Tie Rod Internal Ball Joints-

RXA0056573
RXA0056575


A-Upper Control Arm
B-Lower Control Arm
C-Kingpins
D-Suspension Cylinder
E-Tie Rod

OURX935,000008A -19-22MAR04-1/7

NOTE: Contact your John Deere Dealer for questions or assistance in lubricating the Tie Rod Internal Ball Joints.

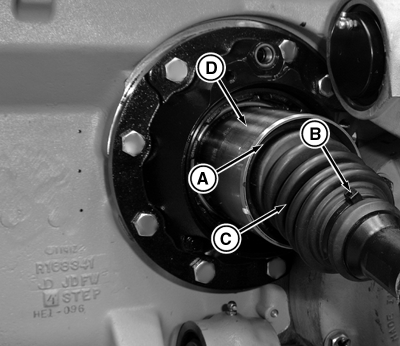

1. Remove boot retaining snap ring (A).
2. Remove tie band (B).
3. Slide boot (C) from inside steering rod (D) exposing ball joint.


A-Boot Retaining Snap Ring
B-Tie Band
C-Boot
D-Steering Rod

RXA0055307

OURX935,000008A -19-22MAR04-2/7

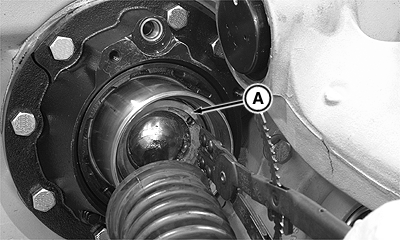

4. Remove outer snap ring (A) from steering rod.


A-Outer Snap Ring

RXA0058837

OURX935,000008A -19-22MAR04-3/7

IMPORTANT: Remove any burrs in snap ring grooves using fine sand paper or Emory cloth. If not removed, damage to components will result. Thoroughly clean area inside steering rod removing all dirt and filings. If not, damage to components will result.

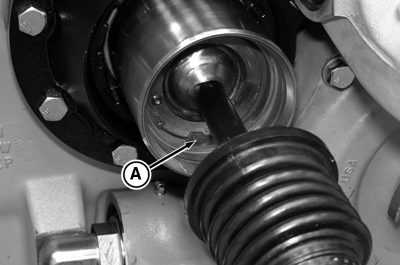

5. Remove snap ring retainer (A).


A-Snap Ring Retainer

RXA0055308

OURX935,000008A -19-22MAR04-4/7

NOTE: Do not remove inner snap ring. Grease may push ball joint from guide resulting in disassembling and reassembling components.

6. Compress snap ring enough to rotate in slot until it aligns with grease fitting hole.

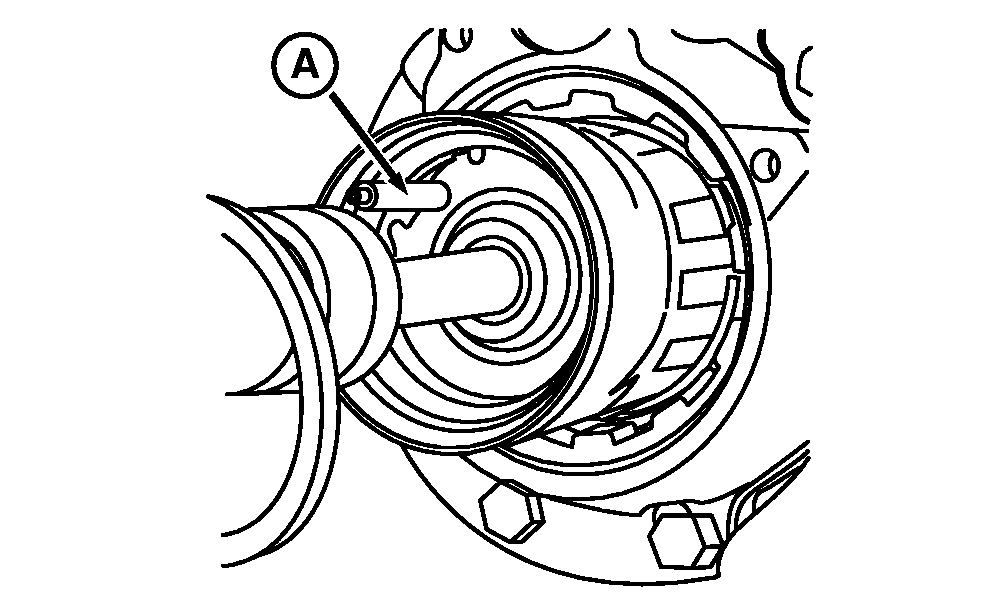

7. Install grease fitting.


A-Grease fitting

RXA0062149

Grease Fitting

OURX935,000008A -19-22MAR04-5/7

IMPORTANT: Too much grease may damage O-ring (B).

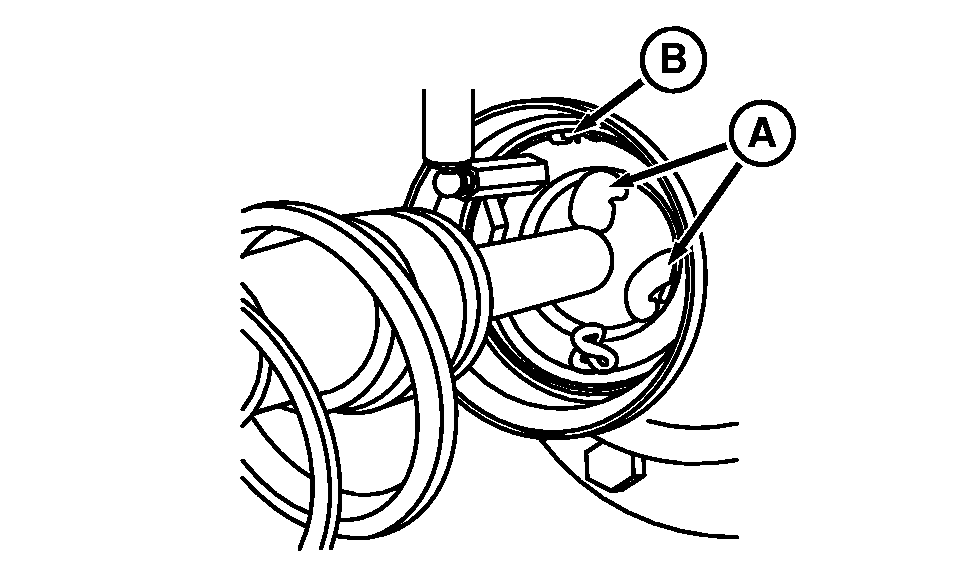

8. Grease inner ball joint until grease (A) is visible around ball joint.
9. Remove grease fitting.


A-Grease

RXA0062152

Install Grease Fitting

OURX935,000008A -19-22MAR04-6/7


10. Install snap ring retainer.
11. Install outer snap ring.
12. Slide boot (C) back into steering rod (D).
13. Replace boot retaining snap ring (A).

IMPORTANT: If tie band is not pulled tight, dirt and other foreign material will damage components.


14. Attach tie band (B) to boot.
15. Pull tie-band tight.


A-Boot Retaining Snap Ring
B-Tie Band
C-Boot
D-Steering Rod

RXA0055307
