Rear Triple Wheel Row Crop Settings

Normal Operation with Hitch Between the Crop Rows
Tire Section › mm 320 380 480
Row Spacing - cm (inch) 50.80 (20) 55.88 (22) 76.20 (30)
Drive Wheel - inch 80 88 60
Dual Wheel - inch 120 132 120
Dual Extension (118.5-in Axle) 7.5 mm washer None None
Triple Wheel - inch 160 176 180
Triple Extension (118.5-in Axle 15 " 15 " plus 6.4mm washer 15" & 10" plus 7.5mm washer
Off Set Operation with Hitch Over the Crop Rows
Tire Section › mm 320 380
Row Spacing - cm (inch) 50.80 (20) 55.88 (22)
Drive Wheel - inch 80 88
Dual Wheel - inch 120 132
Dual Extension (118.5-in Axle) 7.5 mm washer None
Triple Wheel - inch 160 176
Triple Extension (118.5-in Axle 15 " 15 " plus 6.4mm washer




OURX935,0000097 -19-22MAR04-1/4

RXA0061973

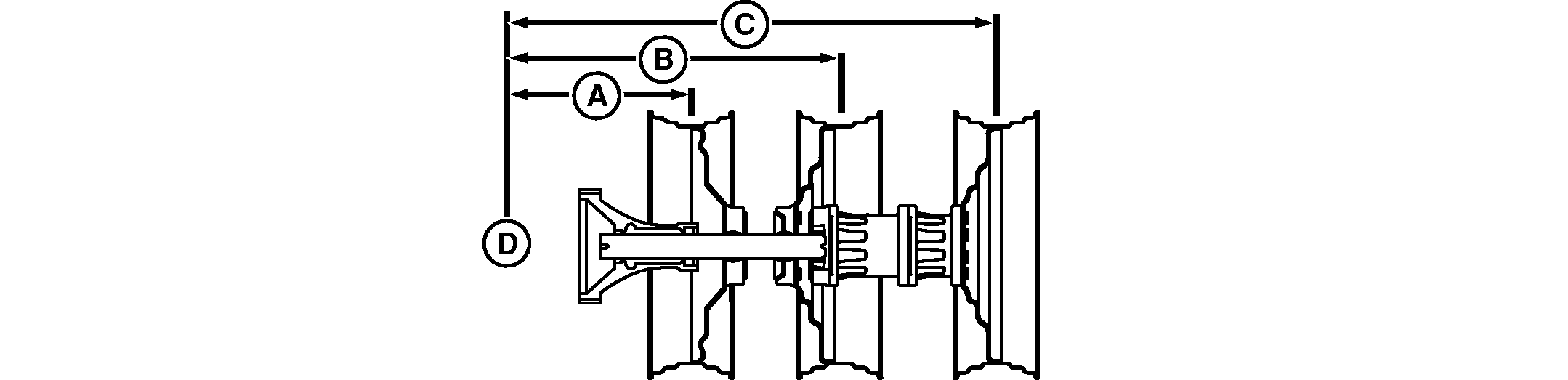

480 mm Rear Tire Triple Tread Setting

480 mm Rear Tires
Normal Operation Single Dual Triple
A B C
  60 Inch 120 Inch 180 Inch
Tire Size Rim Position Rim Position Rim Position
480/80R50 In Out Out
480/80R46 In Out Out
18.4R46 In Out Out



OURX935,0000097 -19-22MAR04-2/4

RXA0061971

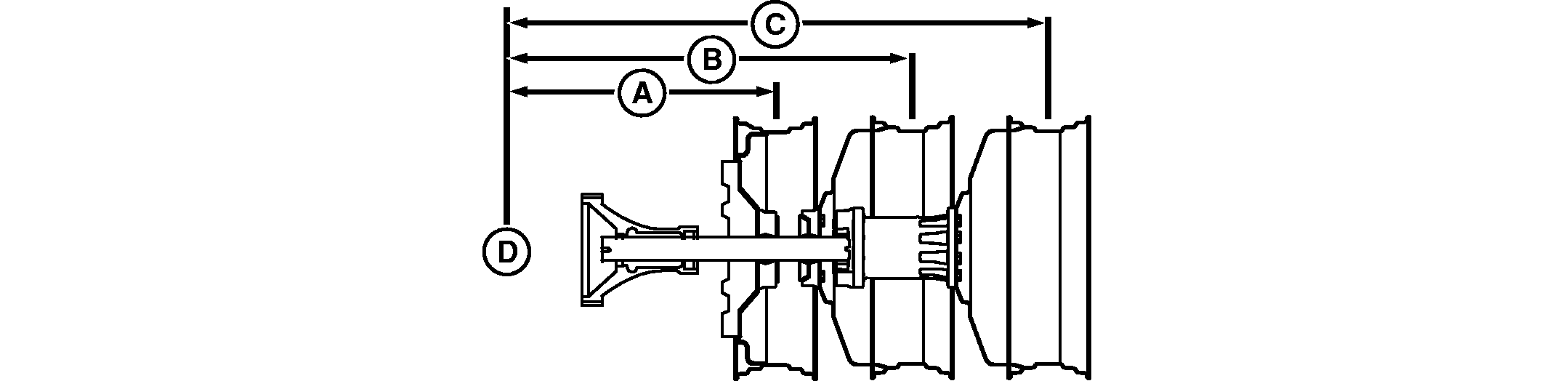

380 mm Rear Tire Triple Tread Setting

380/90R50 Rear Tires
  Single Dual Triple
A B C
Normal Operation 88 Inch 132 Inch 176 Inch
Off Set Operation 66 Inch 110 Inch 154 Inch
Tire Rim Position Rim Position Rim Position
Normal Operation Out Out Out
Off Set Operation In Position La Out
aSee Wheel Tread settings-Sixteen Position Wheels.



OURX935,0000097 -19-22MAR04-3/4

RXA0062372

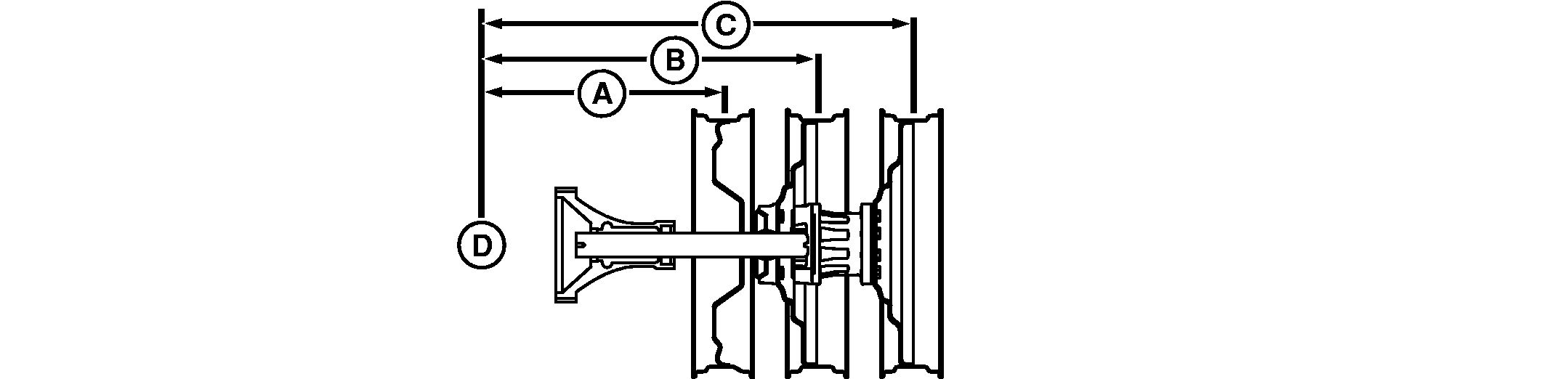

320 mm Rear Tire Triple Tread Setting

320/90R54 Rear Tires
  Single Dual Triple
A B C
Normal Operation 80 Inch 120 Inch 160 Inch
Off Set Operation 60 Inch 100 Inch 140 Inch
Tire Rim Position Rim Position Rim Position
Normal Operation Out Postion Pa Position O a
Off Set Operation In Position L a Position P a
aSee Wheel Tread settings-Sixteen Position Wheels.



OURX935,0000097 -19-22MAR04-4/4
