Replacing Fuel Screen-Late Version

NOTE: Early model tractors were not equipped with a tank screen.

Late models tractors with fuel tank screen should not require service unless fuel supply is disrupted due to contaminates in tank.

2. Remove fitting (A).

.

NOTE: Clamp should only be loosened slightly. If clamp is removed, plastic boss could relax making it difficult to reinstall.

3. Loosen clamp to remove screen.

4. Clean or replace screen as necessary.

IMPORTANT: Apply loctite 30558 to fitting prior to reinstalling.

5. Follow steps in reverse order to install.

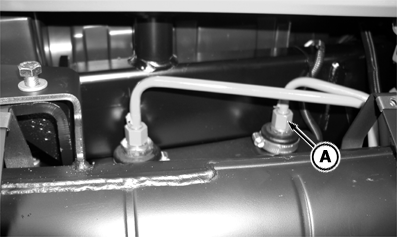

A-Fitting

OURX935,000009E -19-03OCT03-1/1
