IMS Functions - Selective Control Valves

NOTE: Learning requires SCV switch (A) to be in detent position .

Flow Rate and Timed Detent will not be learned and can be changed at any time.

IMS can learn four functions for SCVs:

  • Extend Detent
  • Retract Detent
  • Float ON
  • Cancel Detent

SCV control lever must be in the neutral position during execution of a sequence.

NOTE: SCVs can be operated manually without causing a sequence to abort.

TouchSet Scraper Control can not be programed in IMS.

RXA0061345

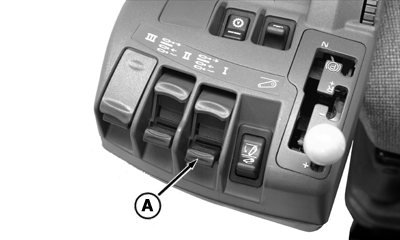

A-SCV Switch I

OURX935,00000C3 -19-19SEP02-1/1
