IMS Functions - Automatic PowerShift (APS)

NOTE: APS maximum gear must be set each time the tractor is started.

APS switch (A) can be cancelled or resumed during LEARN mode.

APS is cancelled by programing a transmission shift in IMS. (See Operating Automatic Powershift in Operating the Tractor Section.)

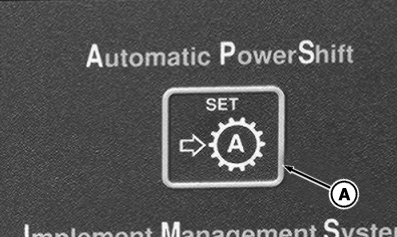

A-Automatic Power Shift Switch

RXA0062497

OURX935,00000C4 -19-19SEP02-1/1
