Bleeding Fuel System (Early Version)

1. Install clear hose assembly (A) or loosen diagnostic receptacle (B) on top of fuel filter base.

2. Push the hand primer (C) 500 to 600 times until flow of fuel is free of bubbles.

3. Remove hose assembly or tighten the diagnostic receptacle (B) while gently pushing down on the hand primer. Continue operating primer until slight pressure is felt.

causym CAUTION: Avoid possible personal injury. SLOWLY loosen fittings (D) and (E).

4. Slowly loosen fittings (D) and continue operating primer (C) until flow of fuel is free of bubbles.

5. Tighten fittings (D) and continue operating primer until slight pressure is felt.

6. While supporting fitting (F) with a wrench, slowly loosen #6 fuel line fitting (E), then push primer (C) until flow of fuel is free of bubbles.

7. Tighten line fitting (E) and continue operating primer until slight pressure is felt.

8. Start engine.

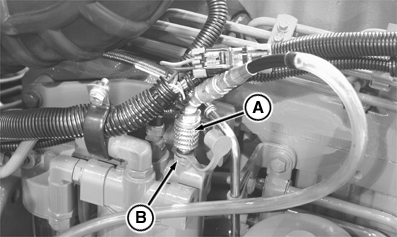

RXA0054737

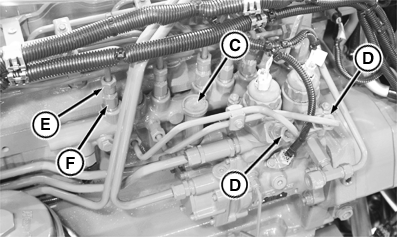

RXA0064843


A-Hose Assembly
B-Diagnostic Receptacle
C-Hand Primer
D-Fittings
E-#6 Fuel Line Fitting
F-Fitting

OURX935,0000136 -19-17JAN03-1/1
