Replacing Cab Roof Hazard Light Bulbs

1. Remove screws (A) and light assembly.

2. Rotate retainer (B) counterclockwise approximately 1/4 turn and remove.

3. Push in and turn light bulb counterclockwise to remove.

4. Install new bulb in reverse order of removal.


A-Screws
B-Light Bulb Retainer

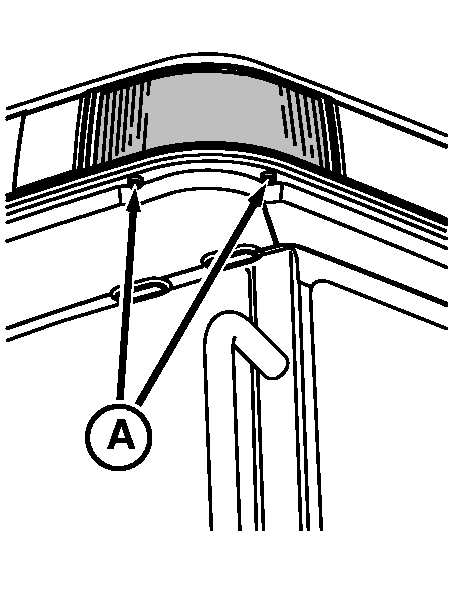

RXA0068501

Cab Roof Light

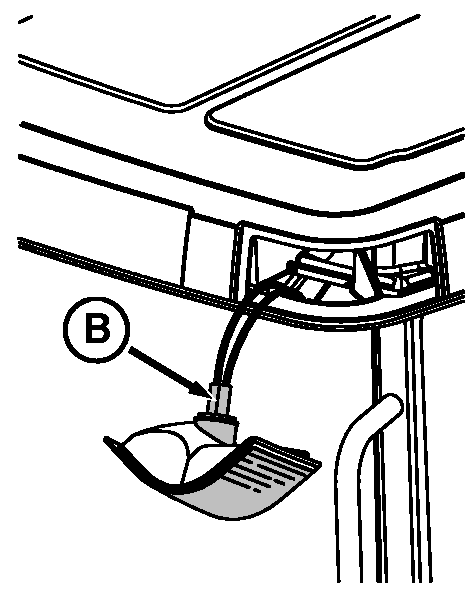

RXA0068502

Remove Retainer

OUo111,0005396 -19-09SEP03-1/1
