Using Differential Lock

NOTE: Both front and rear axles have differential locks for tractors equipped with Independent Link Suspension.

When one wheel begins to slip, engage differential lock by pressing switch (A). Indicator light on display panel will light. Disengage differential lock by pressing either brake pedal.

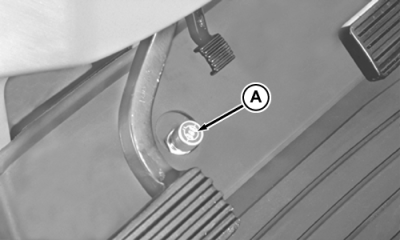

A-Differential Lock Switch

RX15494,000002B -19-14SEP02-1/1
