Using External Raise and Lower Switches

CAUTION: To prevent injury or damage caused by tractor movement, be sure transmission is in PARK position before using external raise and lower switches. Stay clear of interference points when using external raise and lower switches.

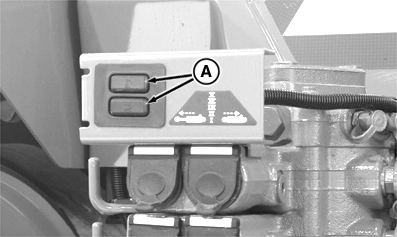

Press external raise and lower switches (A) to raise hitch or to lower hitch. Hitch moves at slower speed when using external raise and lower switches.

NOTE: Hitch system is disabled when external raise and lower switches are used.

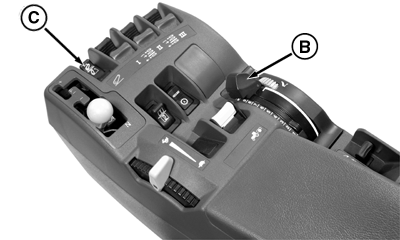

To RESET Hitch Control System , move hitch control lever (B) to actual position of the hitch, or use raise/lower switch (C).

A-External Raise/Lower Switches
B-Hitch Control Lever
C-Raise/Lower Switch

RX15494,0000049 -19-14SEP02-1/1
