Using Sway Blocks

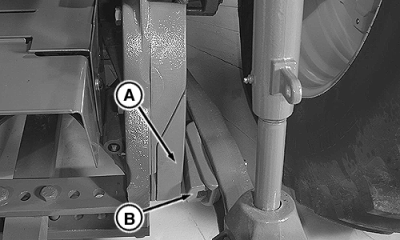

Install sway blocks (A) in lower position to minimize side sway of hitch.

Adjust bumper (B) to limit the amount of sway.


A-Sway Block
B-Bumper

RXA0052493

RX15494,000004C -19-14SEP02-1/2

IMPORTANT: Prevent sway block interference with hitch cylinder hose. Store sway block on same side from which block was removed.

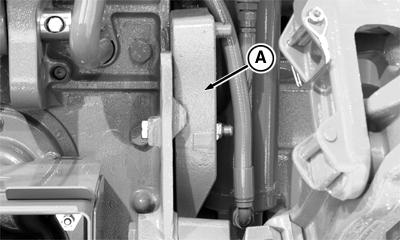

Mount sway blocks (A) in upper position to allow side sway when hitch is lowered. Side sway is prevented when hitch is raised.

IMPORTANT: To prevent draft link interference, be sure distance between tires is:

  • Category 3N Hitch-1.09 m (43 in.)

  • Category 3 Hitch-1.17 m (46 in.)

RXA0056484


A-Sway Block

RX15494,000004C -19-14SEP02-2/2
