Replacing Fuel Filter-(Early Version)

SERVICE INTERVAL - 500 HOURS or ANNUALLY *

* Interval can vary according to operating conditions

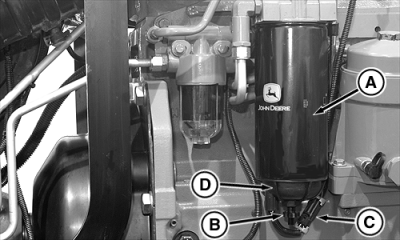

1. Clean exterior of filter (A) and mounting area.

NOTE: Use a catch pan when draining fuel and removing the filter from the tractor.

2. Drain fuel from filter by opening drain valve (B).

3. Close drain.

4. Disconnect sensor connector (C).

5. Remove separator (D) from filter (A) using a 25 mm wrench before removing filter from tractor.

6. Install separator on replacement filter using new O-ring.

7. Remove old filter from tractor. Additional fuel will drain from the filter housing.

RXA0052934


A-Fuel Filter
B-Drain Valve
C-Sensor Connector
D-Water Separator

RX15494,0000050 -19-01JUN04-1/3

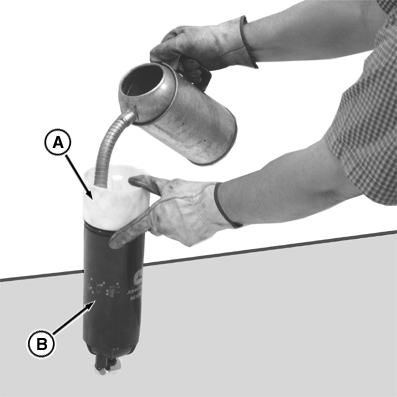

8. Fill the filler cup (A) with fuel and drain excess fuel into drain pan.

IMPORTANT: Avoid fuel system contamination. Do not pour fuel directly into filter (B) without the filler cup (A) installed. Injection pump could seize.

9. Remove and dispose of filler cup.


A-Filler Cup
B-Filter

RXA0054298

RX15494,0000050 -19-01JUN04-2/3

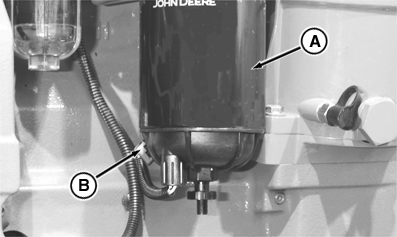

10. Install new filter (A) on tractor. Hand tighten plus an additional quarter of a turn.

11. Connect sensor connector (B) tucking wiring harness behind filter.

12. Start tractor.


A-Filter
B-Sensor Connector

RXA0054301

RX15494,0000050 -19-01JUN04-3/3
