Hitch Conversion-Convertible Quick Coupler

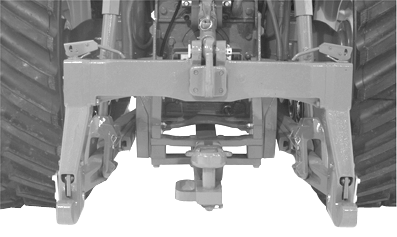

Quick coupler is convertible to Category 3 or Category 3N. Use Category 3 whenever possible, especially for heavy loads.
Use following procedure to convert quick-coupler:
|
|
|
|
RX15494,0000051 -19-21SEP01-1/5
|
|
1.

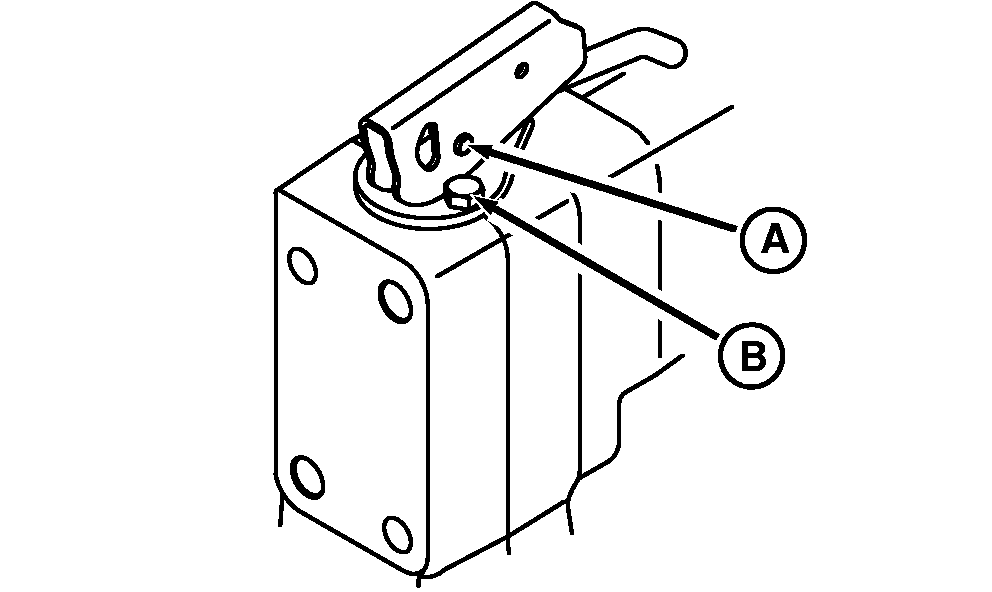

Install spacer (A) on outside of draft link for Category 3N.
2.
Adjust bumper block (B) to minimize clearance.
3.
Tighten nut securely.
|
|
|
|
RX15494,0000051 -19-21SEP01-2/5
|
|
4.

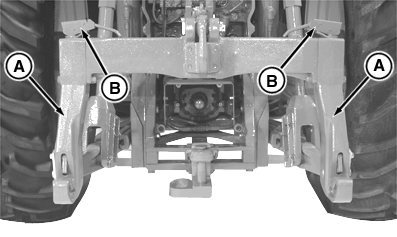

Support center of quick coupler. Remove pin retaining bolts (A) and pins from draft link. Remove side member cap screws (B).
|
|
|
|
RX15494,0000051 -19-21SEP01-3/5
|
|
5.

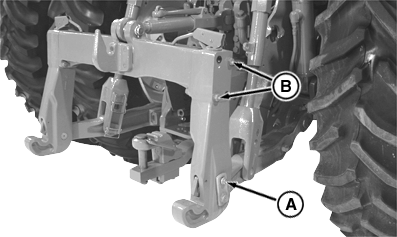

Switch ends with quick coupler side members (A) (left member to right end and right to left). Tighten cap screws to 320+/-64 Nm.
|
|
|
|
RX15494,0000051 -19-21SEP01-4/5
|
|
6.

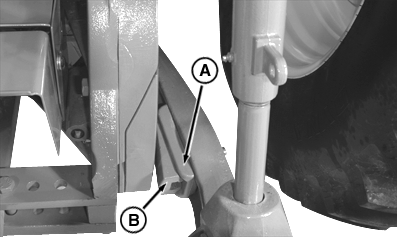

Disconnect handles by removing C-clip and pin.
7.
Remove cap screw from wear plate and turn so tab is inward.
8.
Install cap screws and tighten securely.
9.
Reconnect handles.
A-C-Clip and Pin
B-Cap Screw
|
|
|
|
