Independent Link Suspension Front Duals Installation

Lift front wheel assembly by using a jack under the lower support arm of the front suspension.

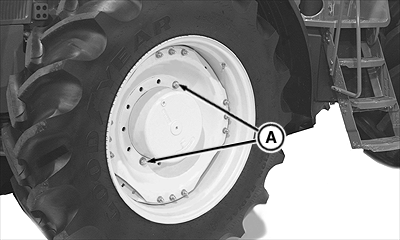

Remove ten bolts leaving two remaining bolts (A) 180° apart.

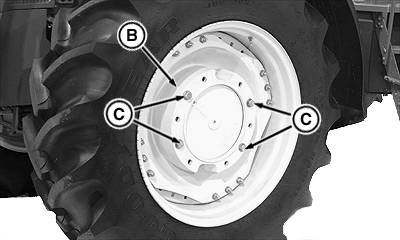

Install spacer (B) and bolts (C) as illustrated.

CAUTION: Avoid the possibility of personal injury. Never operate tractor with loose wheel bolts. Wheel bolts are critical and require retightening.

Use correct lifting equipment when installing dual hub.

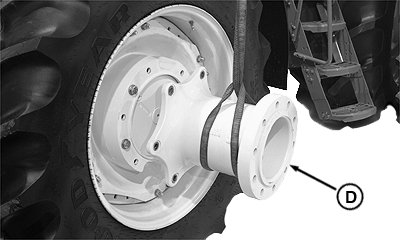

Install dual hub (D) using correct lifting equipment.

Install front dual tire and wheel assembly.

Tighten all bolts until bolts maintain torque of 600 N·m (445 lb-ft).

Drive tractor 100 meters (100 yd) and retighten bolts.

Tighten again at 3 HOURS , 10 HOURS , and DAILY for the first week of operation.

A-Bolts
B-Spacer
C-Spacer Cap Screws
D-Dual Hub
