Cleaning Radiator and Oil Cooler Condenser

Stop engine and raise the hood.

Release spring latch (A) and each side of the oil cooler-condenser (B).

Pull cooler-condenser forward and thoroughly clean condenser and radiator.

Slide cooler-condenser into position and attach spring latches (A).

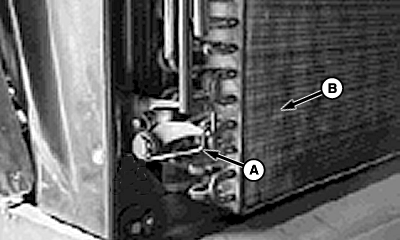

A-Spring Latch
B-Oil Cooler Condenser

RX15494,0000081 -19-14SEP02-1/1
