Operating Turn Signals, Horn and High/Low Beam

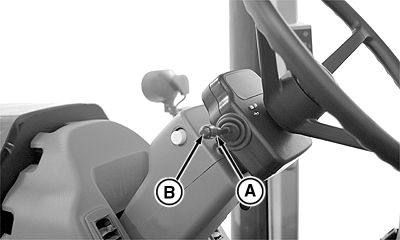

Push lever (A) up for a right turn, or pull down for a left turn. Return lever to center position after completing turn.

Push inward on end (B) to activate horn.

Push lever (A) forward to activate high beam head lights. Pull lever into center position to operate low beam. Pull lever toward you and release to flash high beam.

Dim head lights for oncoming vehicles.

A-Turn Signal Indicator Arm
B-Horn Push Button

RX15494,0000092 -19-14SEP02-1/1
