Using SCV TouchSet™ Controls and Monitor

`

Hydraulic setup and adjustment panel on side console provides operational display of SCV function and a means to set flow rate and detent time operation for each SCV.

At start up, display will show all SCV numbers and symbols for 2 seconds. After start up, SCV monitor displays selected time for each SCV.

Select SCV number (I-V). SCV monitor will enter adjustment mode. Bargraph display will show rabbit, turtle and clock symbols (H) for selected SCV. Digital display shows flow setting and detent time for selected SCV (D).

In adjustment mode, selected SCV settings may be changed. Adjustment mode remains activated for 20 seconds after which time display returns to normal operation.

In normal mode, SCV monitor will only display current detent time settings for each SCV. Flow rate will be displayed as a bargraph.

Transport Lock Touch Switch (F) disables the SCV levers. This function is used when attaching/detaching implements and before transporting implements.

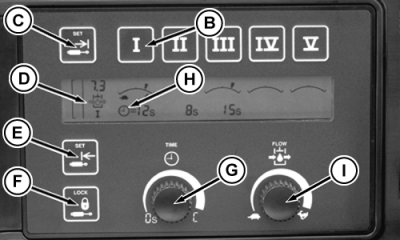

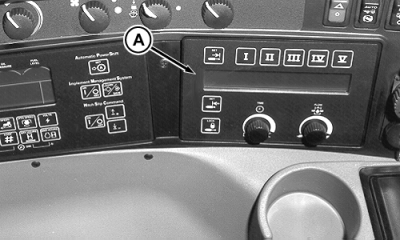

A-TouchSet™ Controls and Monitor
B-SCV Selector Touch Switch
C-Cylinder Extend Limit Touch Switch¹
D-Display-SCV Selected and Flow Rate
E-Cylinder Retract Limit Touch Switch¹
F-Transport Lock Touch Switch
G-Detent Time Adjustment
H-Display-Flow Rate and Time Detents
I-Flow Rate Adjustment

TouchSet is a trademark of Deere & Company

¹Cylinder Extend and Retract Limit Touch Switches used with TouchSet Depth Control only
