Using Seven-Terminal Outlet

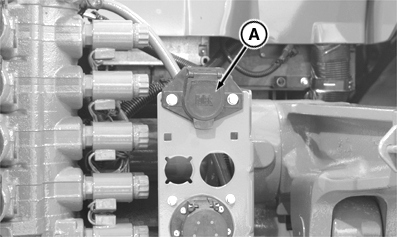

Outlet (A) is used to connect lights, turn signals, and remote electrical equipment on trailers or implements. Always use auxiliary light on towed implement when tractor rear signals and other lights are obscured.

NOTE: Matching plug is available through your John Deere Dealer.

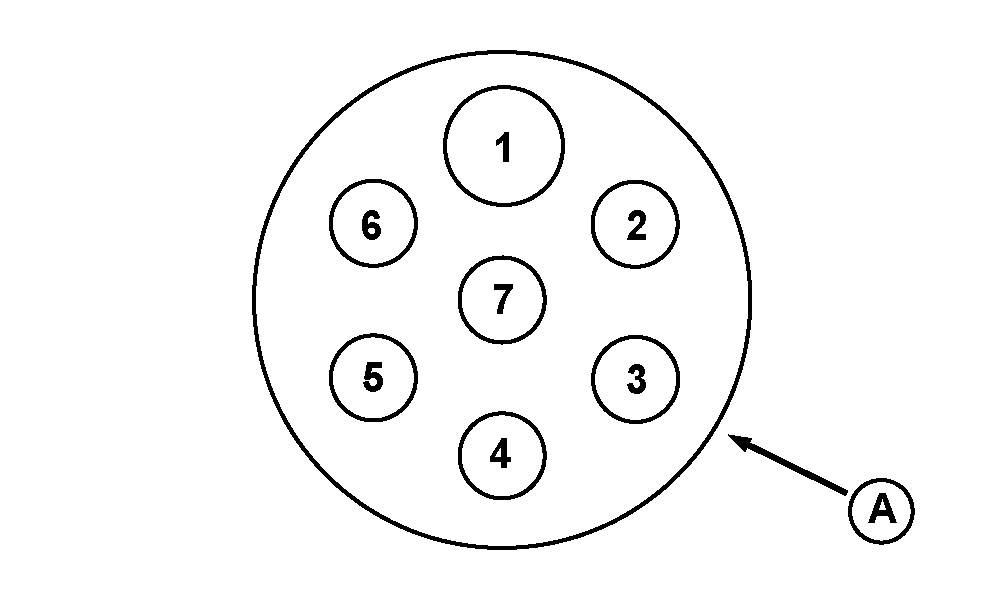

Terminal Function
1 Ground
2 Flood Light
3 Left Turn
4 Accessory
5 Right Turn
6 Tail Light
7 Accessory




A-Seven Terminal Outlet

RXA0057048
RW21249A

RX15494,00000C6 -19-14SEP02-1/1
