Dual Wheel to Hub Installation

CAUTION: Avoid the possibility of personal injury. Never operate tractor with loose wheel bolts.

NOTE: Check the hole sizes on duals, the wheel rim (A) may have one tight fit hole smaller than the other holes. One slot fit hole is 180° from the tight fit hole.

Install and hand tighten bolts (A).

Tighten all bolts until bolts maintain torque of 600 N·m (445 lb-ft).

Drive tractor 100 meters (100 yd) and retighten bolts.

Tighten again at 3 HOURS , 10 HOURS , and DAILY for the first week of operation.

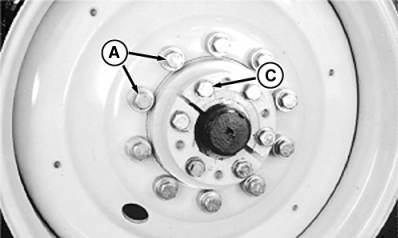

A-Wheel to Hub Bolts
