Lubricating Front Axle

SERVICE INTERVAL - 250 HOURS *

* Daily or 10 Hours in extremely wet conditions

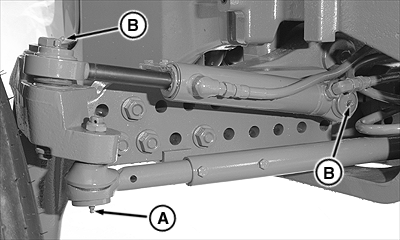

Lubricate each fitting on front axle.


A-Tie Rods
B-Steering Cylinder Ends
C-Steering Spindles
D-Axle Pivot Pin

RXA0056640
RXA0056637
RXA0056638

RX15494,00001A4 -19-25OCT01-1/1
