Vehicle Monitor

RW26230

A "PRIORITY" is the STOP ENGINE, SERVICE ALERT, or INFORMATION indicators.

A "SYSTEM" refers to engine, transmission, hydraulic, or electrical indicators.

A "FUNCTION" refers to pressure, temperature, level, or filter.

A "STATUS" indicates operational mode.

AG,RX15494,2623 -19-17JUL00-1/2

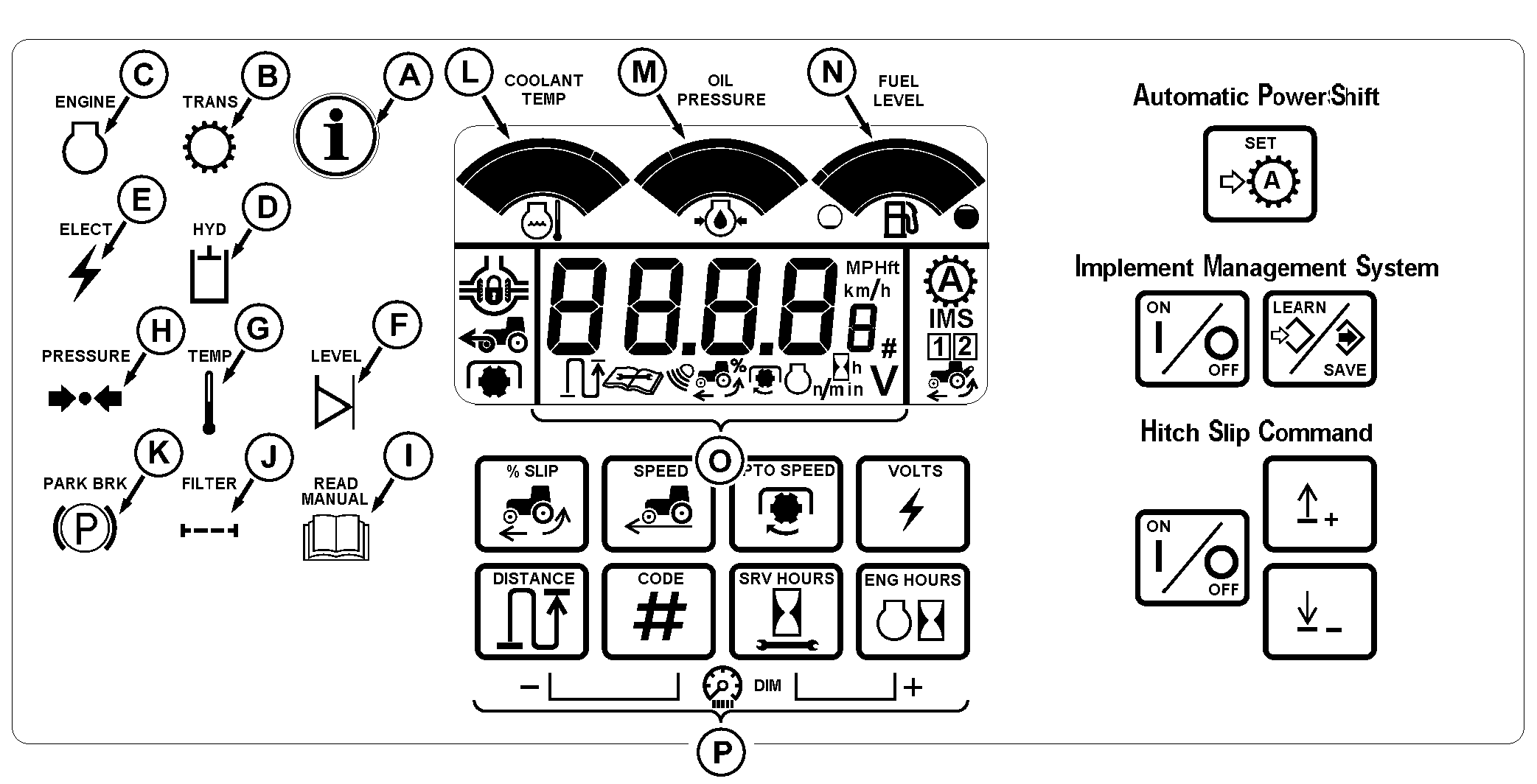

KEY INDICATOR FUNCTION

A INFORMATION Problem has developed possibly reducing performance-Continue to operate and address problem when convenient-Push Code # and check displayed code-Indicator flashes in conjunction with a "SYSTEM", "FUNCTION", or "STATUS" indicator
B Transmission Flashes in conjunction with "PRIORITY" and "FUNCTION" indicators
C Engine Flashes in conjunction with "PRIORITY" and "FUNCTION" indicators
D Hydraulic Flashes in conjunction with "PRIORITY" and "FUNCTION" indicators
E Electrical Flashes in conjunction with "PRIORITY" and "FUNCTION" indicators
F Level Flashes in conjunction with "PRIORITY" and "SYSTEM" indicators
G Temperature Flashes in conjunction with "PRIORITY" and "SYSTEM" indicators
H Oil Pressure Flashes in conjunction with "PRIORITY" and "SYSTEM" indicators
I Read Manual Lights in conjunction with "PRIORITY" indicator and "FUNCTION" indicator-See Service Sections
J Filter Flashes in conjunction with "PRIORITY" and "SYSTEM" indicators
K Park Brake Lights when transmission is in PARK position
L Coolant Temperature Indicates coolant temperature of engine
M Oil Pressure Indicates oil pressure of engine
N Fuel Indicates remaining amount of fuel-Flashes when approximately 60 L (16 gal) of fuel remains
O Digital Display * Displays percent wheel slip, ground speed, PTO speed, distance traveled, service codes, hours since last service, electrical system voltage, and total engine hours
P Function Selectors Changes digital display functions

* Wheel Slip, Ground Speed, and Distance Traveled requires radar for accurate reading
