Calibrating Tire Size-With Radar

NOTE: Calibrating tire size is necessary to obtain accurate wheel slip percentage. Calibration needs to be taken on a hard surface with no load.

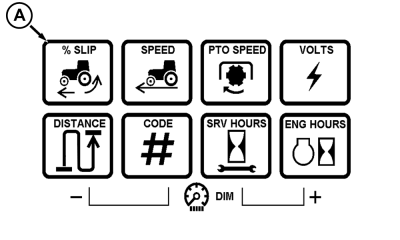

Drive tractor straight at 8 km/h (5 mph) while pressing and holding wheel slip switch (A) for three seconds. Display will read zero percent wheel slip if calibrated correctly. Display will read Err if not calibrated correctly.

NOTE: Tractor must be moving and radar installed correctly to ensure correct wheel slip calibration. See Calibrating Radar.

AG,RX15494,2625 -19-27OCT99-1/1
