NOTE: Changing tire size or loading of tractor can cause angle of radar to change which will require a recalibration of the radar system.

Mark a straight-line course of 122 m (400 ft).

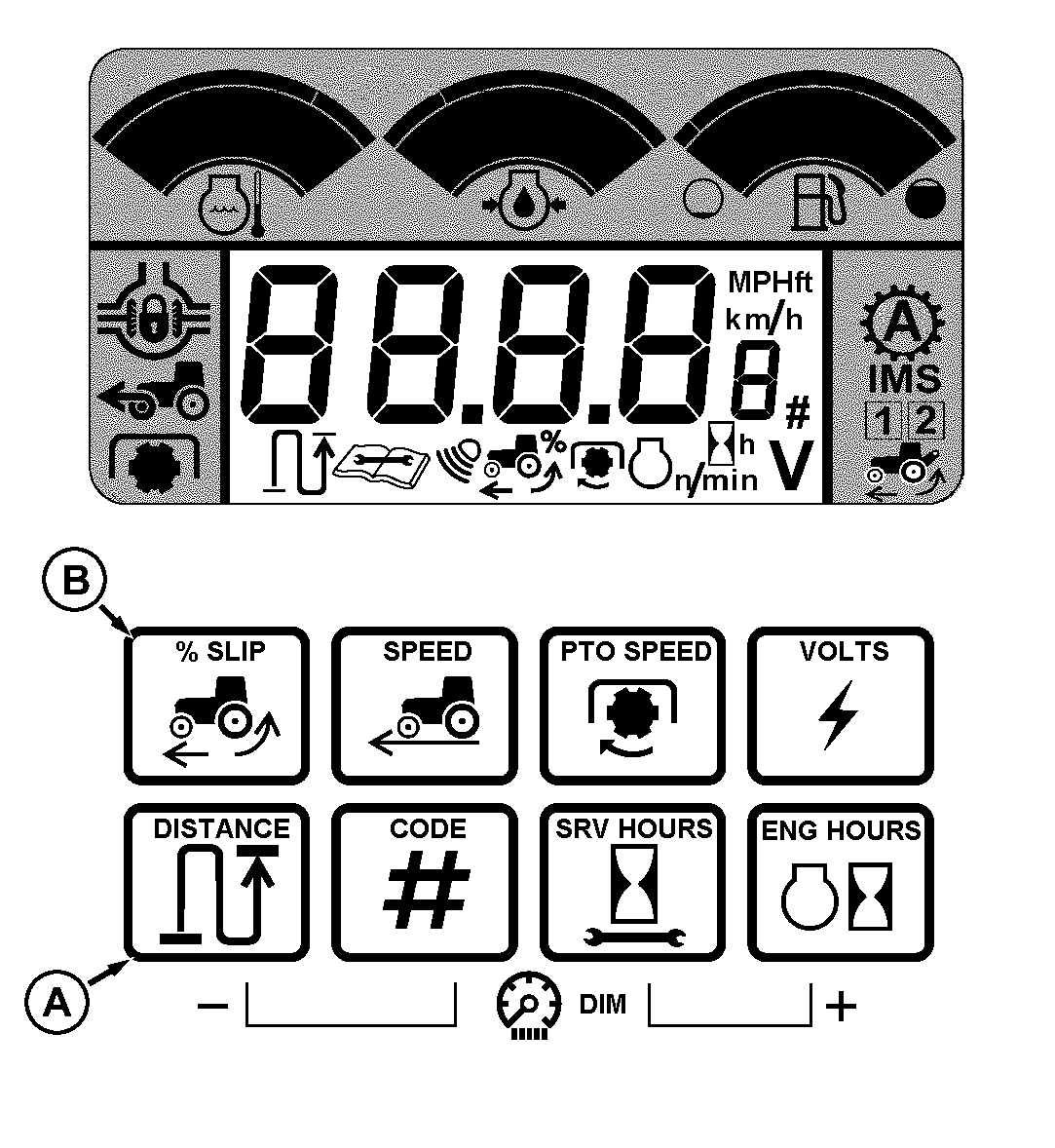

At starting point, press and hold distance touch switch (A) for 3 seconds. Display will show zero.

Drive tractor at approximately 3.2 km/h (2 mph) to the 122 m (400 ft) mark and stop.

NOTE: Do not backup if end point is exceeded. Return to starting point and repeat procedure.

Press percent slip touch switch (B) and distance touch switch (A) simultaneously. Display will show "End" if calibration was successful. If not, display will show "Err" and calibration should be performed again at a slightly faster speed, but less than 11.3 km/h (7 mph).
