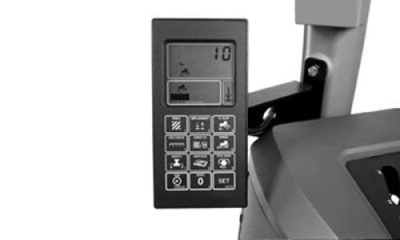

Performance Monitor-Optional

NOTE: Ignition switch must be in the ON position to operate performance monitor.

Performance monitor displays information related to various speeds, area, distance, time and alarm data.

Bargraph displays wheel slip and monitor backlight intensity.

Area, wheel slip, slip alarm, width, implement indicator, distance, backlight brightness, and service hours can be adjusted or preset.

A radar sensor is required for an accurate calculation of wheel slip, area covered, distance or speed. Without a radar sensor, values are estimates based on wheel speed.

NOTE: Press and hold AREA touch pad for 8 seconds to change display from English to Metric units.
