Operating Lights
 CAUTION:
Avoid injury caused by accidental collision with another vehicle. Always comply with traffic regulations when driving tractor on a road. Dim headlights to low-beam for oncoming vehicles. Avoid using flood lights which could blind or confuse other drivers.
The light switch (A) has four positions and operates regardless of the key position.
| OFF POSITION |
| |
| Switches Off All Lights |
| |
| ROAD POSITION-(B) |
| Low Beam Position: |
High Beam Position: |
| |
|
| Head Lights |
Head Lights |
| Amber Hazard Lights |
Amber Hazard Lights |
| Tail Lights |
Tail Lights |
| Extremity Warning Lights |
Extremity Warning Lights |
| |
|
| FIELD POSITION 1-(C) |
| Low Beam Position: |
High Beam Position: |
| |
|
| Head Lights |
Head Lights |
| Front Floods |
Front Floods |
| Rear Fender Floods |
Rear Fender Floods |
| Lower Side Floods |
Lower Side Floods |
| Upper Side Floods |
Upper Side Floods |
| |
Rear Roof Floods |
| |
|
| FIELD POSITION 2-(D) * |
| Low Beam Position: |
High Beam Position: |
| |
|
| Head Lights |
Head Lights |
| Front Floods |
Front Floods |
| Rear Fender Floods |
Rear Fender Floods |
| Lower Side Floods |
Lower Side Floods |
| |
Upper Side Floods |
| Front Roof Floods |
Front Roof Floods |
| |
Rear Roof Floods |
| |
|
| * All Field Lights ON |
|
|
A-Light Switch
B-Road Position
C-Field Position 1
D-Field Position 2

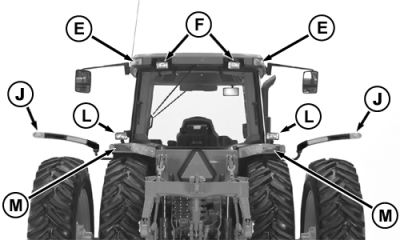

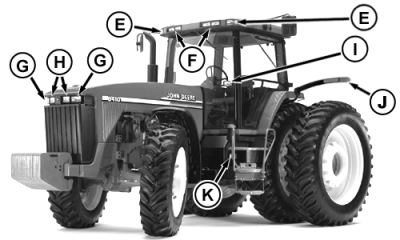

E-Amber Hazard Lights
F-Roof Flood Lights
G-Front Flood Lights
H-Head Lights
I-Upper Side Flood Lights (Optional)
J-Extremity Transport Warning Lights
K-Lower Side Flood Lights
L-Rear Fender Flood Lights
M-Red Tail Lights
|
