Operating Turn Signals, Horn and High/Low Beam

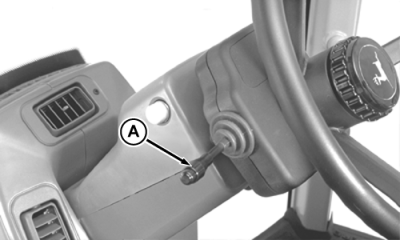

Push lever (A) up for a right turn, or pull down for a left turn. Return lever to center position after completing turn.

Push inward on end of lever (A) to activate horn.

Push lever (A) forward to activate high beam head lights. Pull lever into center position to operate low beam. Pull lever toward you and release to flash high beam.

Dim head lights for oncoming vehicles. Adjust head lights correctly. (See Maintenance-Electrical System Section.)

AG,RX15494,2637 -19-27OCT99-1/1
