Positioning Steps and Handrails

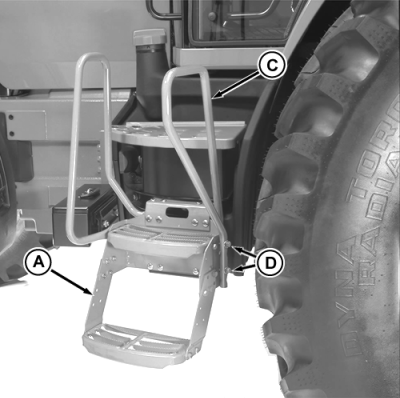

Steps (A) can be adjusted side-to-side to accommodate various row spacings, crop height or attachments.

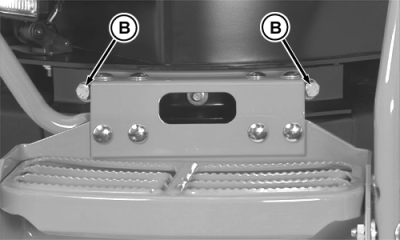

Loosen bolts (B) to change position.

Right handrail (C) should be positioned in conjunction with the steps.

Remove bolts (D) to position handrail in desired location.

AG,RX15494,2642 -19-27OCT99-1/1
