Adjusting Fan Speed

Turn knob (A) to desired fan speed.

NOTE: The purge position is designed to exhaust hot air rapidly from the cab.

The pressurization blower operates whenever the fan speed switch is in the ON position.

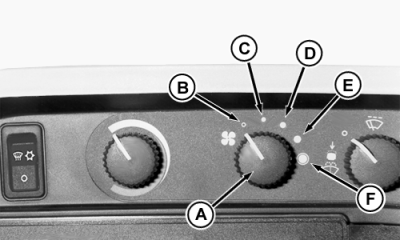

A-Fan Control
B-Off
C-Low
D-Medium
E-High
F-Purge

AG,RX15494,2644 -19-17JUL00-1/1
