OMAR178323: 8110, 8210, 8310, and 8410 Tractors( 10 001- ), Block File: AG_RX15494_2645_19

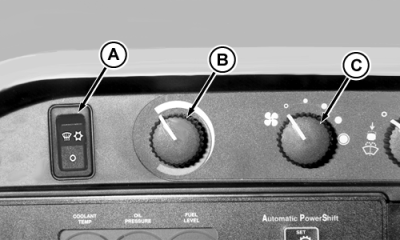

Fan speed control (C) and air conditioning switch (A) must be in the ON position before the air conditioning system will operate.

Control (B) regulates the heater and defroster temperature.

Put switch (A) in the ON position to defog the windows, and adjust control (B) to desired temperature.

AG,RX15494,2645 -19-17JUL00-1/1
