Implement Management System (IMS) - Description

RW26310

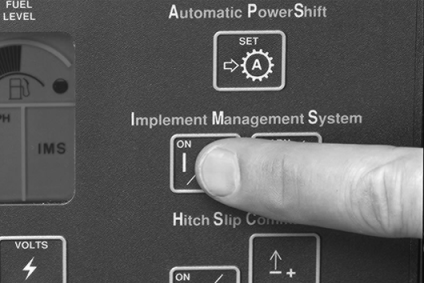

Implement Management System (IMS) allows multiple tasks to be performed with the touch of one switch.

IMS has two sequences in which to store learned functions. A sequence is defined as the start of the first recorded function to the completion of the last recorded function.

NOTE: Tractor must be moving to program or execute a sequence. Learned sequences will remain stored after engine stops.

A sequence is executed according to the distance required to perform a series of functions when the system is in the LEARN mode. A maximum of 12 functions can be learned for each sequence.

LEARNED FUNCTIONS

Item Function(s)

Hitch RAISE/LOWER
TouchSet Depth Control UP/DOWN
Transmission Gear Upshift or Downshift in Forward Gear
Auto Shift CANCEL, RESUME
SCV Detent EXTEND, Detent RETRACT, Float ON, and CANCEL
MFWD ON/AUTO, OFF
PTO OFF
Differential Lock ON/OFF



AG,RX15494,2682 -19-27OCT99-1/1
