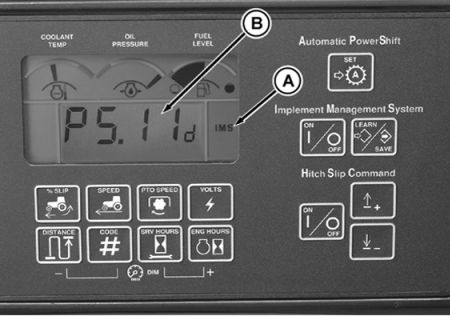

ON/OFF indicator (A) will display when Implement Management System is activated.
Press IMS
ON/OFF
switch to OFF, then ON to view the functions programmed in the two sequences.
Stored sequences and LEARNED functions (B) will be displayed in the order learned.
| VEHICLE MONITOR DISPLAY CODES |
| |
| Code |
Definition |
| |
|
| SE 1 |
Sequence #1 Follows |
| SE 2 |
Sequence #2 Follows |
| 3 Pt U |
Three-Point Hitch UP |
| 3 Pt d |
Three-Point Hitch DOWN |
| PS.X U |
Shift UP to Gear |
| PS.X d |
Shift DOWN to Gear |
| APS |
Automatic PowerShift RESUME |
| Hy X E |
EXTEND SCV Valve |
| Hy X r |
RETRACT SCV Valve |
| Hy X F |
FLOAT SCV Valve |
| Hy X 0 |
CANCEL SCV Valve |
| Fr.dr 1 |
MFWD ON |
| Fr.dr 0 |
MFWD OFF |
| Pto 0 |
PTO OFF |
| DiFF 1 |
Differential Lock ON |
| DiFF 0 |
Differential Lock OFF |
| End |
End of Sequence |
|
