Using External Raise/Lower Switch

CAUTION: To prevent injury or damage caused by tractor movement, be sure transmission is in PARK position before using external raise/lower switch. Stay clear of interference points when using external raise/lower switch.

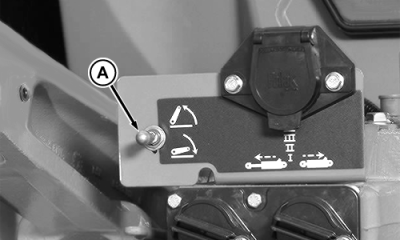

Pull external raise/lower switch (A) outward and hold switch up to raise hitch, or down to lower. Hitch moves at slower speed when using external raise/lower switch.

NOTE: Hitch system is disabled when external raise/lower switch is used.

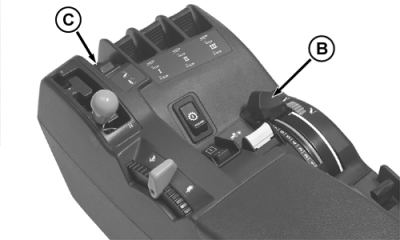

To RESET Hitch Control System , move hitch control lever (B) to actual position of the hitch, or use raise/lower switch (C).

AG,RX15494,2699 -19-27OCT99-1/1
