Using Hitch Manual Lowering Feature

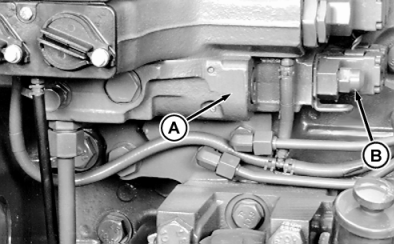

CAUTION: Avoid personal injury or death. Do not disconnect any hitch sensors, solenoids, or connectors from the hitch control valve (A) when tractor is running or key switch on. Unexpected hitch movement may occur. Stay clear of hitch area when starting engine.

Hitch manual lowering is possible when hydraulic pressure and/or electrical power is not available.

Remove knurled cap (B) to access the manual lower pin on the hitch valve. Pry against pin to manually lower the hitch.

NOTE: The hitch cannot be raised mechanically. Both hydraulic and electrical power are required to raise the hitch.
